輸送式地毯清洗機
詳細介紹：

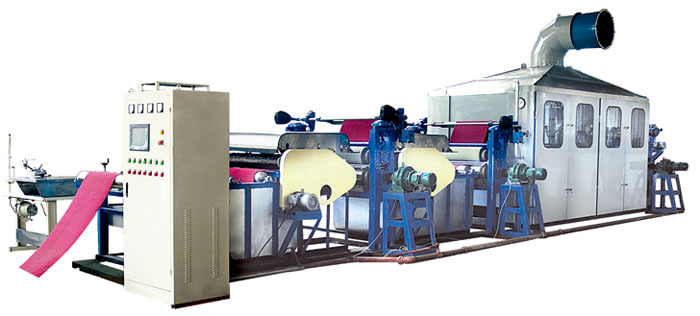

LDSQ100-A 系列輸送式地毯清洗機
LDSQ100-A系列輸送式地毯清洗機集清洗、脫水、烘燥功能于—體，是我公司科研人員根據鐵路、航空用地毯的清洗要求，研制成功的一種新型地毯清洗機械。本產品采用PLC人機界面產品觸摸屏，并配用機械拼縫對接技術。
該機具有結構臺理、操作方便、安全可靠、洗滌效果好，工作效率高，成本低等優點。解決了過去長期手工勞動強度大，清洗不干凈的難題，是鐵道、航空、賓館過道地毯等行業的洗滌機械。
LDSQ100-A Transport type carpet cleans machine
LDSQlOO-A Transport type carpet cleans machine have washing , dewatering , drying function. It was researched and designed according to the requested of railway and airline use. it fillsup the new machine of domestic gap , Authenticated and expansion use by province class section and railway department. This machine has the most advanced PLC with man-machine interface touch hold , also with sew connect technical by machine.
This machine has a hot virtuesas reasonable structure , east operacon safely , effective washing , high efficiercy and saving energy , to solve the difficulty problems such as longterm greatest strength labor by hand. Hard Io clean.
It is the best washing machine for carpet used in gungway of railway , airline , hotel and so on.
輸送式地毯清洗機系列主要技術參數：
Main Technical Parameter
| 安裝后外形尺寸Overall | 長×寬×高=10.2m×3.5m×3.7m |
| 裝機總功率Totol power | 17.09KW |
| 蒸汽滾筒最大氣Max.pressure for steam drum | 0.6Mpa |
| 蒸汽滾筒直徑Dimension of steam drum | Φ900mm |
| 軋輥允許最大氣壓 Max.atmospheric pressure of roll | 0.4Mpa |
| 毛刷線速度 Brush linear speed | 34-204m/min（常用100-200m/min） |
| 毛刷輥轉速Speed of rotal brushroll | 60-360r/min |
| 軋輥轉速Speed of rotative by poel | 0.8-2.6r/min |
| 地毯運行速度Speed operation of by carpet | 0.6-1.8r/min |
| 地毯幅寬Width of capet | <1m |
| 地毯厚度Thickness of capet | 5-10mm |
| 烘筒表面最高溫度The highest temperature of drying drum | 158℃ |
| 機器總重量Totol weight | 約12T |
| 用水量Water consumption | 約每小時2.5T |
| 用電量Electronic consumption | 約每小時17.9度 |
| 用蒸汽量Steam consumption | 約每小時250-300kg |
| 洗衣粉用量Soap powder consumption | 約每米1.5g |
