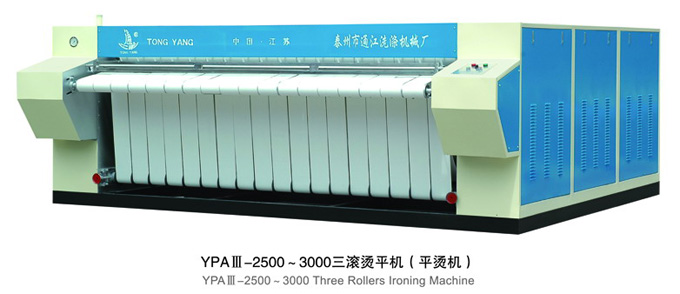

床單燙平機
詳細介紹：
一、主要特點
1、本機采用變頻調速，用戶可根據不同織物的需要及熨平狀況選用合適的熨平速度。
2、采用烘筒通壓蒸汽的辦法或紅外線電加熱石英管，加熱滾筒表面，熱效率較高。
3、本機采用減速機減速，速比大，超負荷能力強，噪音低。
4、采用鏈條傳動，具有較大的承載能力。
5、織物輸送系統采用寬錠帶，避免高幅帆布在傳動中難于堅決的游動現象。
6、各滾筒之間具有一定的速差，熨平效果更好。
7、烘筒的蒸汽進口采用旋轉接頭密封無漏氣，使用壽命長。
8、本公司已成功研制四、五、六滾熨平機，用戶可根據具體的情況對熨平機進行升級改造。
9、本系列機型具有蒸汽加熱和電加熱兩種加熱形式可供選擇。
The main features
1, the machine adopts frequency control of motor speed, the user can according to the needs of different fabric and ironing condition to
choose suitable ironing speed.
2, the drying cylinder pressure steam method or infrared electric heating quartz tube, heating roller surface and high thermal efficiency.
3, the machine adopts reducer reducer, speed ratio, overload ability, low noise.
4, USES the chain transmission, has higher bearing capacity.
5, fabric conveyor system with wide spindle tape, avoid high canvas is difficult to resolute walk phenomenon in the drive.
6, each has a certain speed difference between drum, ironing effect is better.
7, the drying cylinder steam import using rotary joint seal, no leakage, long service life.
8, the company has successfully developed four, five, six rolling ironing machine, the user can according to the specific situation to upgrade
the ironing machine.
9, this series of models with steam heating and electric heating two heating forms to choose from.
|
二、燙平機主要技術參數(Main Technical specifications)
|
|
型號
model |
外形尺寸(mm）
overall dimensions |
滾筒尺寸及數量
Roller dimension(mm) and quantity |
功率(kw)
power |
電加熱功率(kw)
Electric heating power |
熨燙速度
(m/min) ironing speed |
蒸氣壓力
(Map) steam pressure |
備注Note
|
|
YPAⅠ-1800
|
2800*1400*1500
|
φ800*1800/1
|
0.75
|
24
|
0-7
|
0.4-0.6
|
電加熱型與蒸汽型 Electric or steam type
|
|
YPAⅠ-2500
|
3500*1400*1500
|
φ800*2500*1
|
0.75
|
30
|
0-7
|
0.4-0.6
|
|
|
YPAⅠ-2800
|
3800*1400*1500
|
φ800*2800/1
|
0.75
|
36
|
0-7
|
0.4-0.6
|
|
|
YPAⅠ-3000D
|
4000*1400*1500
|
φ800*2800/1
|
0.75
|
39
|
0-7
|
-
|
|
|
YPAⅡ-2800D
|
3800*2400*1500
|
φ800*2800/2
|
1.5
|
72
|
0-20
|
-
|
|
|
YPAⅡ-3000
|
4000*2400*1500
|
φ800*3000/2
|
1.5
|
-
|
0-20
|
0.4-0.6
|
|
|
YPAⅢ-3000
|
4000*3400*1500
|
φ800*3000/3
|
2.2
|
-
|
0-26
|
0.4-0.6
|
|
|
YPAⅠ-2800M
|
3900*2000*1700
|
φ1166*2800/1
|
1.1
|
-
|
0-15
|
-
|
燒木材型,外加引風機與燃燒爐 Wood-buring type with blower
|
|
YPAⅠ-3000M
|
4100*2000*1700
|
φ1166*3000/1
|
1.5
|
-
|
0-15
|
-
|
|
|
YPAⅠ-2800M
|
3900*1400*1500
|
φ800*2800/1
|
0.75
|
-
|
0-7
|
-
|
|
三、產品簡介
|
||
|
